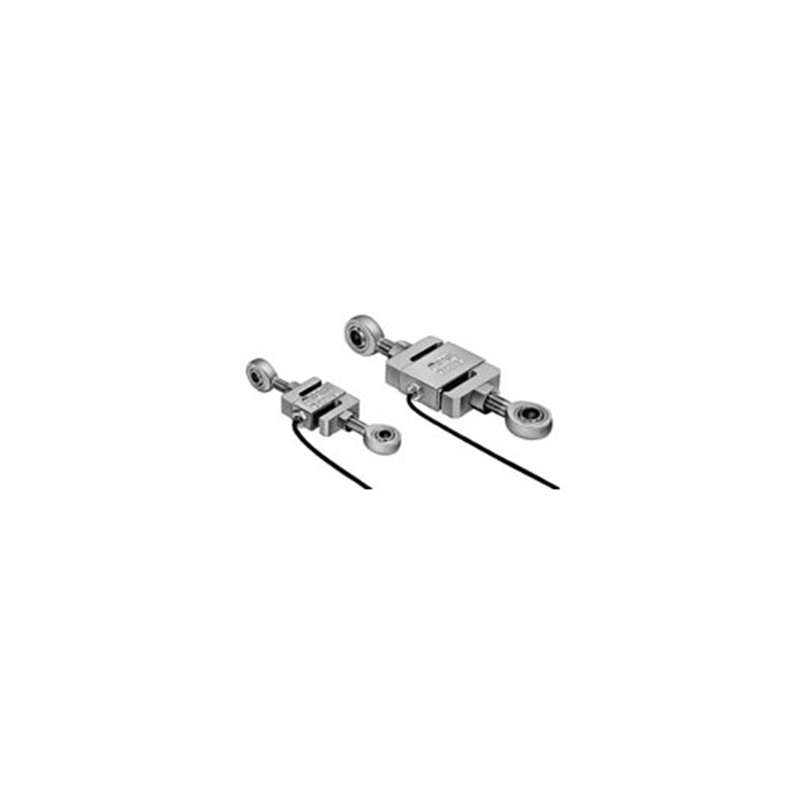

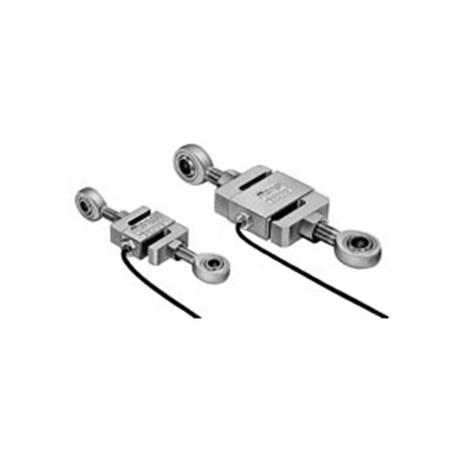

A&D - LC1205 View larger
A&D - LC1205 S-Cell Loadcell
LC1205 S-Cell Loadcell

A&D's LC1205 S-Cell Loadcell Series

Aluminium/Toolsteel Construction Loadcell

200% overload rating

8 capacities from 20kg to 2000kg

Features:
  • Dual guided cantilever & shear beam design
  • Rated output 2mV/V ±0.5%
  • Maximum safe overload 200% of rated capacity
  • Compensated temperature range -10~+60 degrees C
  • Compact, light weight and easy to handle
  • Moisture proof
  • Input resistance approx 400 ohms
  • Output resistance 350 ± 3.5 ohms
  • Linear in both tension and compression

Capacities:
Model Capacity
LC1205-K020 20kgf*
LC1205-K050 50kgf*
LC1205-K100 100kgf
LC1205-K200 200kgf
LC1205-K500 500kgf
LC1205-T001A 1tf
LC1205-T002 2tf
LC1205-T005 5tf
*Aluminium Construction

Dimensions:
Model Dimensions
LC1205-K020 50 x 64 x 19 mm
LC1205-K050 50 x 64 x 19 mm
LC1205-K100 50 x 64 x 12 mm
LC1205-K200 50 x 64 x 19 mm
LC1205-K500 50 x 64 x 19 mm
LC1205-T001A 75 x 100 x 24 mm
LC1205-T002 75 x 100 x 24 mm
LC1205-T005 75 x 100 x 36 mm
NMI trade approved NO
Properties Toolsteel Construction with Metric Threads Top & Bottom

A&D - LC1205 S-Cell Loadcell

A&D - LC1205 S-Cell Loadcell Series Brochure

Download (238.24k)
