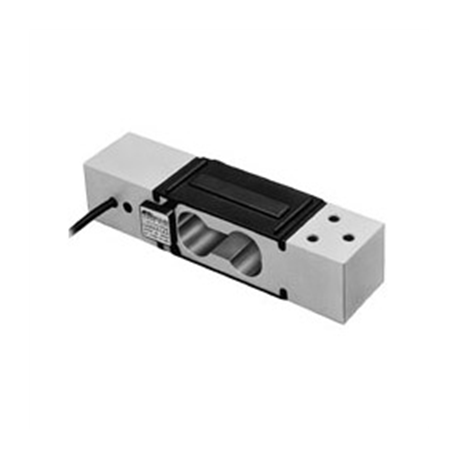

A&D - LC-4103 Single Point Cell

Model LC-4103 Single Point Cell

A&D's LC-4103 Single Point Cell Range

Alloy Cell construction from 60kg to 150kg

300% overload rated

Features:

Parallelogram type construction
Rated output 1mV/V +15/-0%
Maximum safe overload 300% of rated capacity
Compensated temperature range -10~+40 degrees C
Dead weight can be up to 80% of rated capacity (Live weight + Dead weight) up to 180% of rated capacity
Moisture proof & Waterproof (WP versions are coated)
Input resistance approximately 400 ohms
Output resistance 350 ± 5 ohms
Maximum platform size for single load cell 400mm x 400mm

LC-4103 Capacities:

Model Capacity

LC4103-K060 60kgf

LC4103-K060WP 60kgf

LC4103-K100 100kgf

LC4103-K100WP 100kgf

LC4103-K150 150kgf

LC4103-K150WP 150kgf

Capacity & Increment	60kg, 100kg , 150kg & 300kg
Water-proof rating	IP65 (WP versions of the cell)
Properties	Alloy construction cell body with connector on cable. WP versions are Silicon Coated.
