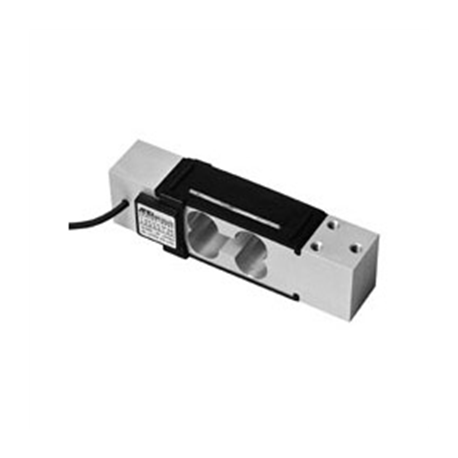

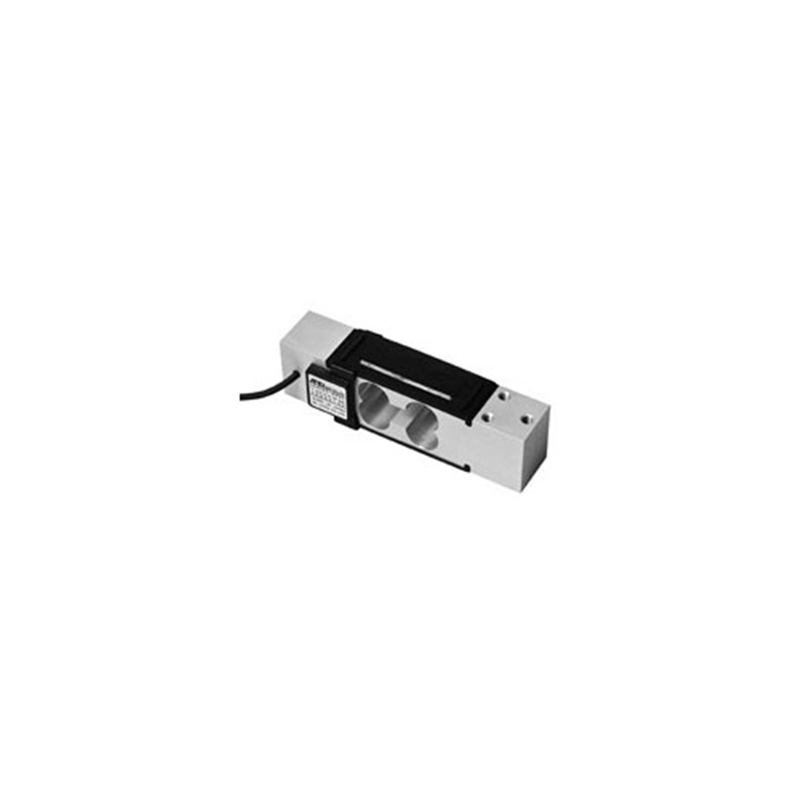

A&D - LC-4102 Single Point Cell

Model LC-4102 Loadcell range

A&D's LC-4102 Single Point Loadcell range

Alloy Cell construction from 10kg to 150kg

300% overload rated

Features:

Parallelogram type construction
Rated output 1mV/V +15/-0%
Maximum safe overload 300% of rated capacity
Compensated temperature range -10~+40 degrees C
Dead weight can be up to 80% of rated capacity (Live weight + Dead weight) up to 180% of rated capacity
Moisture proof
Input resistance approximately 400 ohms
Output resistance 350 ± 5 ohms
Maximum platform size for single load cell 400mm x 400mm

LC-4102 Capacities:

Model Capacity

LC4102-K010 10kgf

LC4102-K015 15kgf

LC4102-K030 30kgf

LC4102-K030WP (waterproof) 30kgf

LC4102-K150 150kgf
