A&D - LC-4204 View larger

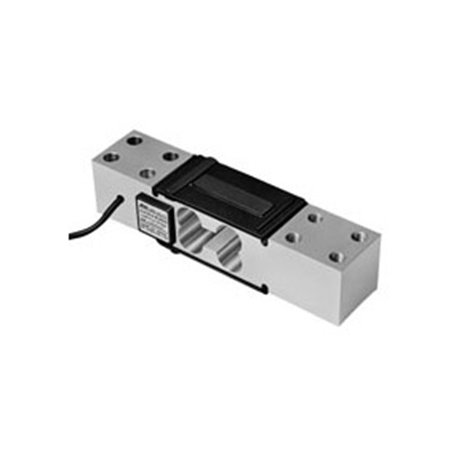

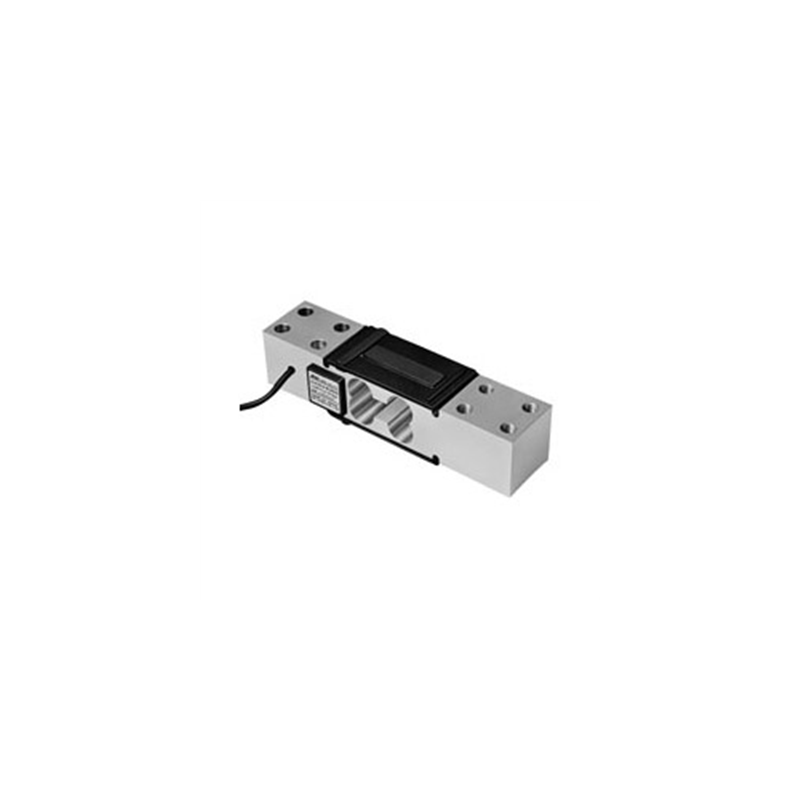

A&D - LC-4204 Single Point Load Cell
LC-4204 Load Cell

A&D's LC-4204 Series Single Point Load Cell

Two Capacities, 300kg & 600kg

Anodised Alloy Finish

Comes with Standard A&D Connector

Features:
  • Parallelogram type construction
  • Rated output 1.5mV/V ±0.2%
  • Maximum safe overload 200% of rated capacity
  • Compensated temperature range -10~+40 degrees C
  • Can be used for both single and multi point weighing
  • Moisture proof
  • Input resistance approx 400 ohms
  • Output resistance 350 ± 5 ohms
  • Maximum platform size for single load cell 700mm x 600mm



Capacities:
Model Capacity
LC4204-K300 300kgf
LC4204-K600 600kgf
Capacity & Increment 300kg & 600kg Available

A&D - LC-4204 Loadcell

A&D - LC-4204 Load Cell Brochure

Download (293.37k)
