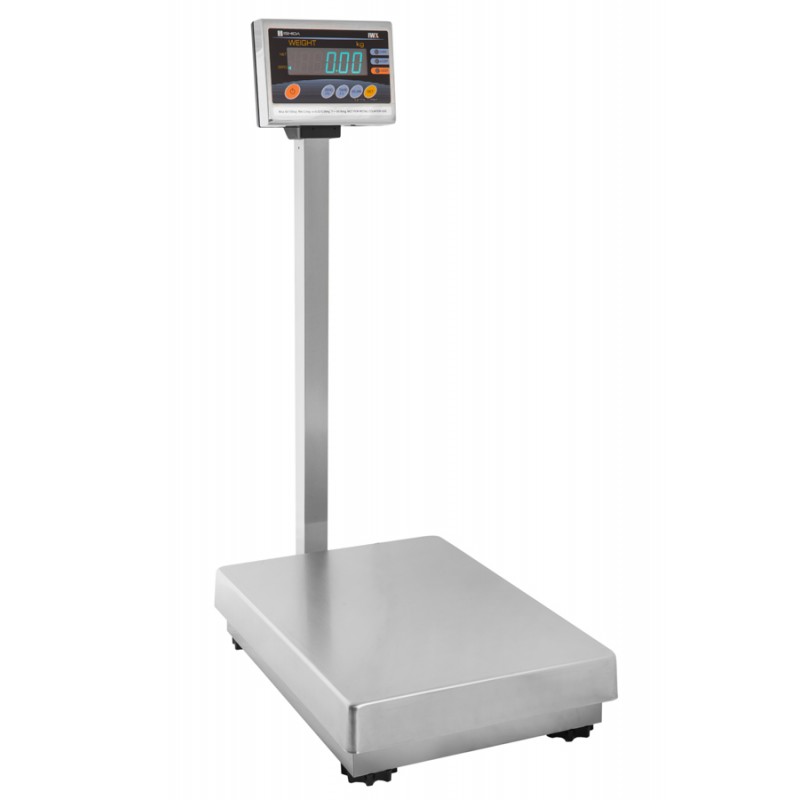

This outstandingly durable weighing unit can be washed and sprayed with water, allowing for easy cleaning. For the first time in the industry the load cell has been coated with acrylic resin to make it completely water-proof. This is the same kind of treatment used on aluminum sash.

Large Fluorescent Display

• Large, clear fluorescent display (character height: over 30 mm)
• Featuring large digits, the bright fluorescent display provides superior visibility under any conditions.
• Has weight checking function for accurate weighing.



Model	IWX-30
Capacity	30 kg
Minimum Graduation	0.005 kg (0-15 kg) 0.01 kg (15-30 kg)
	Multi interval
Display	Fluorescent
Weight Check	over, accept, under
Weight	16.8 kg
Waterproof Construction	IP-67
Power Supply	AC 100 V ~ 240 V +/-10 %, 50/60 Hz
Standard Interface	External buzzer or RS232C and relay output signal (except IWB-Series)
Option	RS232C cable, relay output box (except IWB-Series)
Safety Approval	UL, CE, c-Tick
*1. Console for IWQ series is IP-65. *2. Battery performance varies depending on its manufacturer, preservation, temperature, and condition of usage.

Model	IWX-150
Capacity	150 kg
Minimum Graduation	0.02 kg (0-60 kg) 0.05 kg (60-150 kg)
	Multi interval
Display	Fluorescent
Weight Check	over, accept, under
Weight	4.7 kg
Waterproof Construction	IP-67
Power Supply	AC 100 V ~ 240 V +/-10 %, 50/60 Hz
Standard Interface	External buzzer or RS232C and relay output signal (except IWB-Series)
Option	RS232C cable, relay output box (except IWB-Series)
Safety Approval	UL, CE, c-Tick
*1. Console for IWQ series is IP-65. *2. Battery performance varies depending on its manufacturer, preservation, temperature, and condition of usage.
