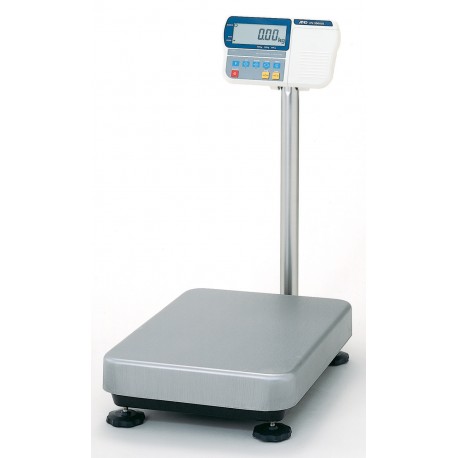

A&D - HW-G Series Platform Scale
HW-G Series Platform Scales

A&D's HW-G Series Platform Scales

High Resolution for highest accuracy throughout the range

Choice of Battery powered LCD display type or mains powered VFD

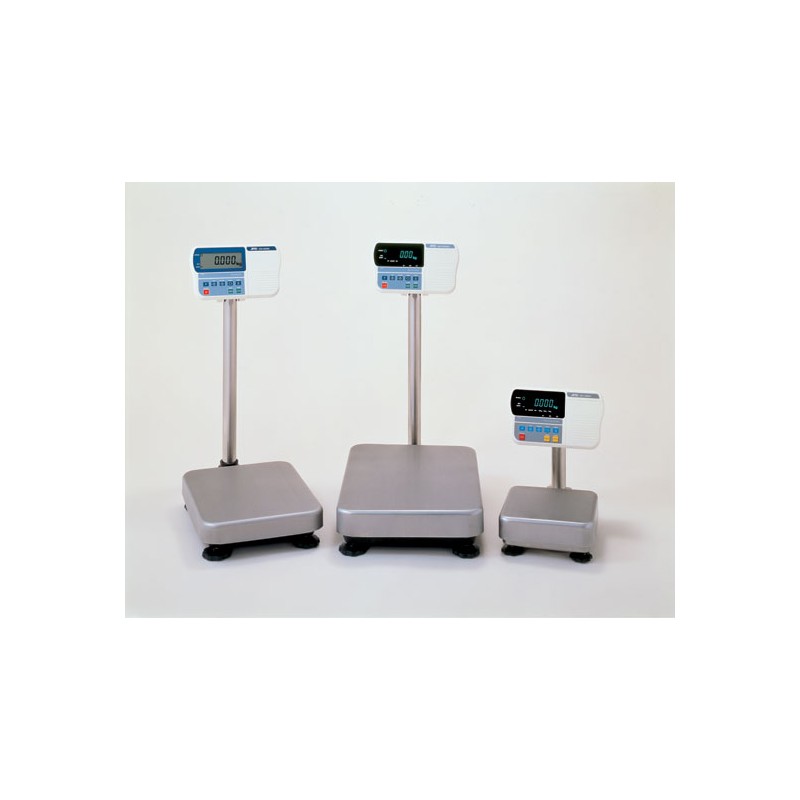

Three frame sizes to suit any application

Features:

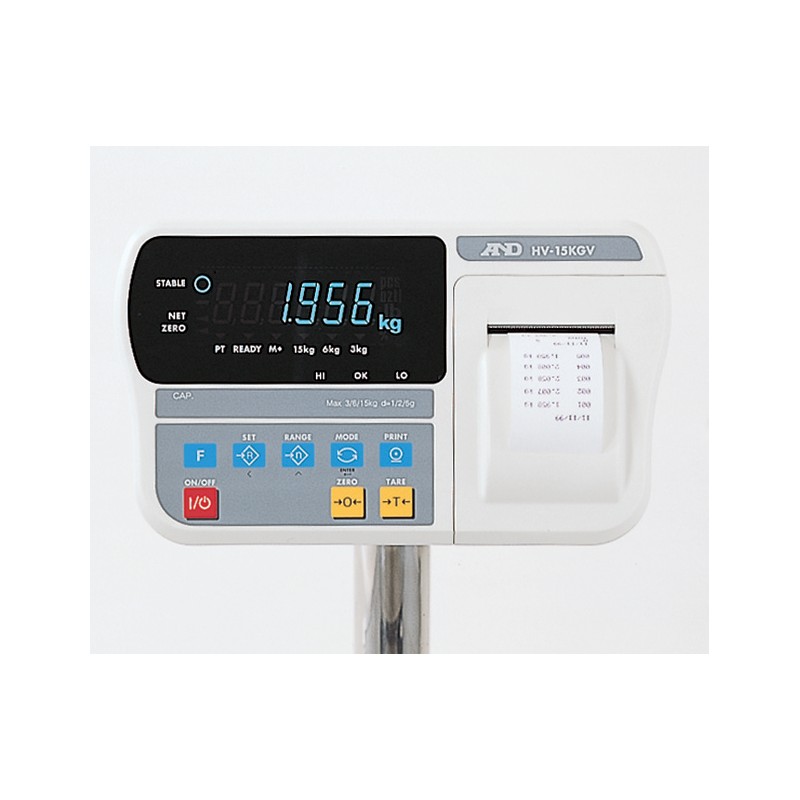

  • Liquid Crystal [HV-KGL series] or Vacuum Fluorescent [HV-KGV series] display
  • Rugged and Reliable operation
  • Manufactured in Australia
  • Standard RS232C serial data interface
  • Software includes counting, batching & % functions
  • Full digital calibration (FDC) ensuring accurate and simple calibration
  • Single point overload protected loadcell
  • Built in comparator function with automatic full feed/dribble feed control
  • Software includes accumulation of weights/counts to memory

Pan Sizes:
Model Pan Size
HW-10KGL 250(W)x250(D)mm
HW-10KGV 250(W)x250(D)mm
HW-60KGL 330(W)x424(D)mm
HW-60KGV 330(W)x424(D)mm
HW-200KGL 390(W)x530(D)mm
HW-200KGV 390(W)x530(D)mm

Dimensions
Model Dimensions
HW-10KGL 275(W)x474(D)x368(H)mm
HW-10KGV 275(W)x474(D)x368(H)mm
HW-60KGL 330(W)x621(D)x771(H)mm
HW-60KGV 330(W)x621(D)x771(H)mm
HW-200KGL 390(W)x712(D)x773(H)mm
HW-200KGV 390(W)x712(D)x773(H)mm

Capacities:
Model Capacity
HW-10KGL 10kg x 1g
HW-10KGV 10kg x 1g
HW-60KGL 60kg x 5g
HW-60KGV 60kg x 5g
HW-200KGL 220kg x 20g
HW-200KGV 220kg x 20g

Capacity & Increment 10kg x 1g, 60kg x 5g & 220kg x 20g
NMI trade approved NO
Power Source Battery/AC adaptor (HW-KGL) Mains powered (HW-KGV)
Water-proof rating IP65 Basework
Properties Waterproof Cast Alloy Base with Encapsulated Loadcell

A&D - HV-HW Series Platforms

HV-HW Series Platform Brochure

Download (542.16k)
