Ishida - IWQ Series Platform Scale
IWQ Series Platform Scale

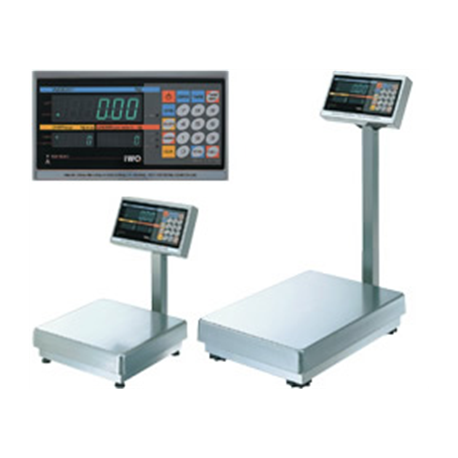

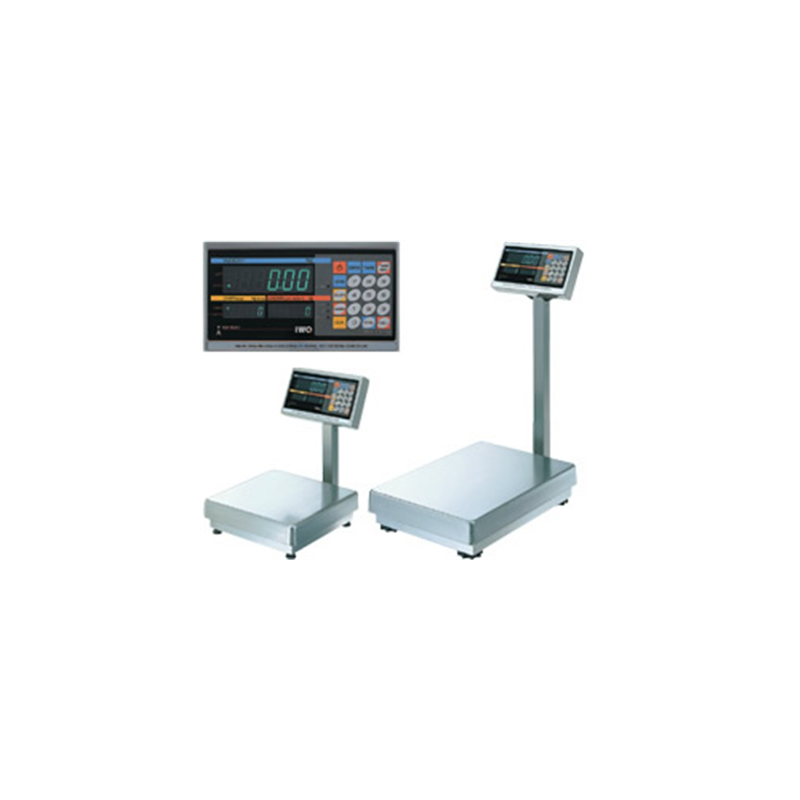

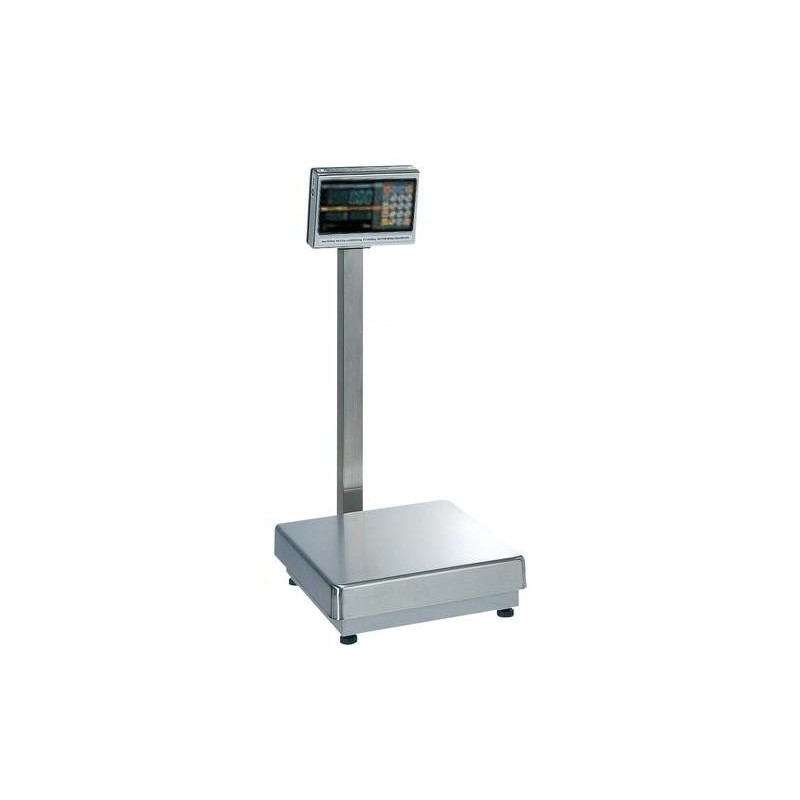

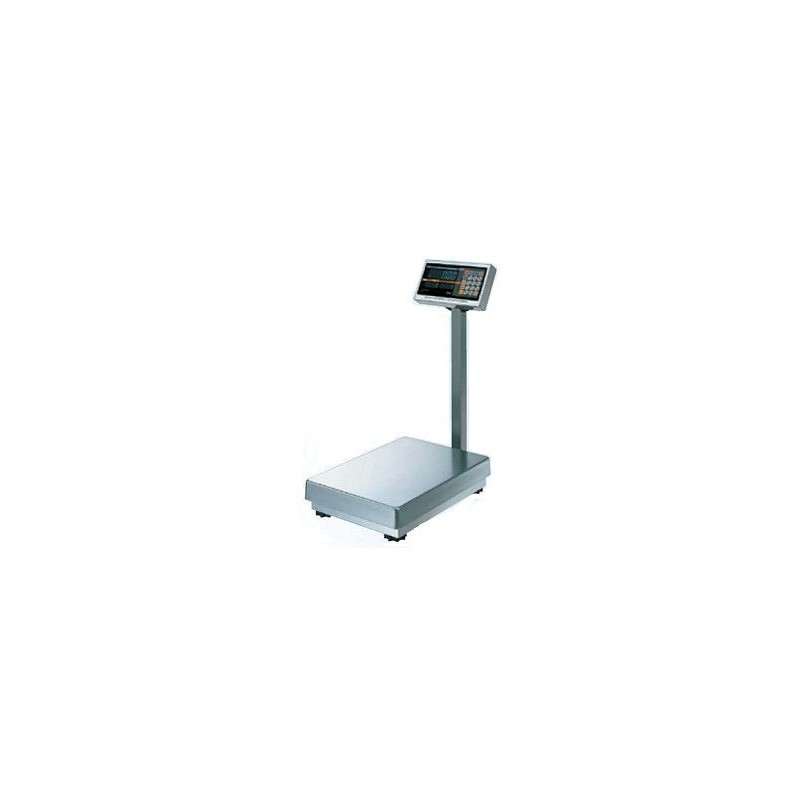

Ishida IWQ Series Platform Scale

Dual Range 30kg/15kg or 150kg/60kg

Stainless Steel Frame

Large Vacuum Fluorescent Display

Waterproof rated to IP67 (base) and IP65 (indicator)

Keyboard Tare Entry

Features:



Water-proof Design Conforms to IP-67

The IW-Series meets IP-67 requirements, even allowing washdown for highest sanitary conditions.

Sturdy, Stain, Chemical, and Corrosion Resistant Water-proof Load Cell Conforms to IP-67.


This outstandingly durable weighing unit can be washed and sprayed with water, allowing for easy cleaning. For the first time in the industry the load cell has been coated with acrylic resin to make it completely water-proof. This is the same kind of treatment used on aluminum sash.

Three Display Windows and Easy Operating Keypad

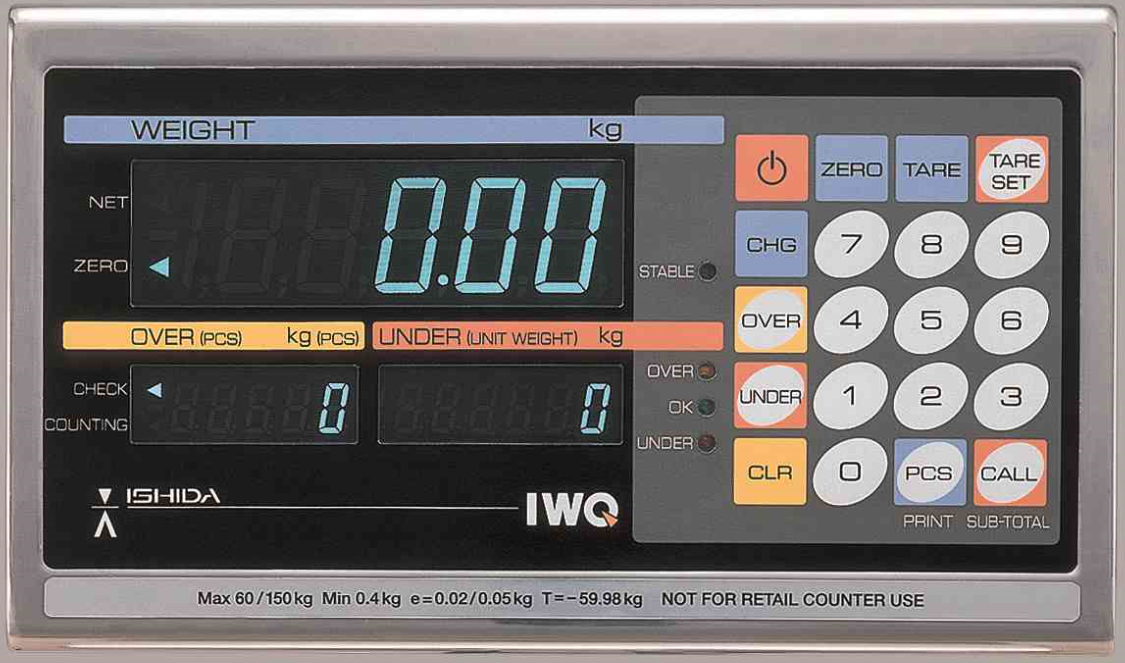

IWQ Display
  • Upper and lower weight limits can be set to check if the product weight is within the specified range. Suitable for controlling the filling quantity of packed food, etc.
  • The numeric keypad allows easy operation in counting mode. Unit weight and total weight can be displayed at the same time.
  • The versatile IW Series provides fast, accurate counting. Simply change modes to turn the unit into a counting scale, easy-to-preset, the scale quickly computes weight per piece after samples are placed on the counting plate.





Model IWQ-30
Capacity 30 kg
Minimum Graduation 0.005 kg (0-15 kg) 0.01 kg (15-30 kg)
Multi interval
Display Fluorescent
Weight Check over, accept, under
Weight 10 kg
Waterproof Construction IP-67 (console: IP-65)
Power Supply AC 100 V ~ 240 V +/-10 %, 50/60 Hz
Standard Interface External buzzer or RS232C and relay output signal (except IWB-Series)
Option RS232C cable, relay output box (except IWB-Series)
Safety Approval UL, CE, c-Tick
*1. Console for IWQ series is IP-65.
*2. Battery performance varies depending on its manufacturer,
preservation, temperature, and condition of usage.

Model IWQ-150
Capacity 150 kg
Minimum Graduation 0.02 kg (0-60 kg) 0.05 kg (60-150 kg)
Multi interval
Display Fluorescent
Weight Check over, accept, under
Weight 17.4 kg
Waterproof Construction IP-67 (console: IP-65)
Power Supply AC 100 V ~ 240 V +/-10 %, 50/60 Hz
Standard Interface External buzzer or RS232C and relay output signal (except IWB-Series)
Option RS232C cable, relay output box (except IWB-Series)
Safety Approval UL, CE, c-Tick
*1. Console for IWQ series is IP-65.
*2. Battery performance varies depending on its manufacturer,
preservation, temperature, and condition of usage.
Capacity & Increment 150kg/60kg x 50g/20g & 30kg /15kg x 10g/5g
NMI trade approved YES
Power Source 240V AC mains
Water-proof rating IP67 High protection
Properties Full Stainless Steel Frame Construction
